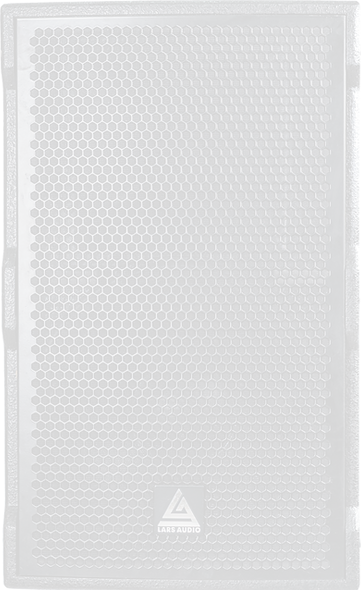

LA-FR 152
Component LF : 1 x 15” ND Driver
Component HF 1 x 3” ND Driver
Power : 750 W RMS / 1900 Prog
Amplification Mode : Passive
Mode : Biamp / Full Range
Frequency Response : 58Hz-20KHz
Max SPL : 136 dB
Connector : 2 x NL4
Cabinet : Wooden
Weight : 22 Kg
LA-FR 122
Component LF : 1 x 12” ND Driver
Component HF 1 x 2” ND Driver
Power : 500 W RMS / 1600W Prog
Amplification Mode : Passive
Mode : Biamp / Full Range
Frequency Response : 63Hz-18KHz
Max SPL : 130 dB
Connector : 2 x NL4
Cabinet : Wooden
Weight : 18 Kg
LA-SUB 118
Component LF : 1 x 18” ND Driver
Power : 1,000 Watts / 1800 Peak 10ms
Amplification Mode : Passive
Mode : SUB
Max SPL : 137 dB
Connector : 2 x NL4
Cabinet : Wooden
Weight : 27 Kg
LA-FR 108 V2
Component LF : 1 x 8” ND Driver
Component HF 1 x 1” ND Driver
Power : 300 Watts / 1000 Peak 10ms
Amplification Mode : Passive
Mode : Biamp / Full Range
Frequency Response : 63Hz-18KHz
Max SPL : 128 dB
Connector : 2 x NL4
Cabinet : Wooden
Weight : 10 Kg
PASSIVE
ACTIVE
LA-FR 152a
Component LF : 1 x 15” ND Driver
Component HF 1 x 3” ND Driver
Amplifier Power : 1500 Watts
Amplification Mode : Active
Build it DSP
DSP Control Via USB
Frequency Response : 58Hz-20KHz
Max SPL : 132 dB
Connector : XLR in + XLR Out
Cabinet : Wooden
Weight : 22 Kg
LA-FR 122a
Component LF : 1 x 12” ND Driver
Component HF 1 x 2” ND Driver
Amplifier Power : 1200 Watts
Amplification Mode : Active
Built In DSP
DSP Control Via USB
Frequency Response : 63Hz-18KHz
Max SPL : 130 dB
Connector : Connector : XLR in + XLR Out
Cabinet : Wooden
Weight : 18 Kg
LA-SUB 118
Component LF : 1 x 18” ND Driver
Amplifier Power : 1800 Watts Amplification Mode : Active
Mode : SUB
Max SPL : 136 dB
Connector : XLR In + XLR Out
Cabinet : Wooden
Weight : 27 Kg

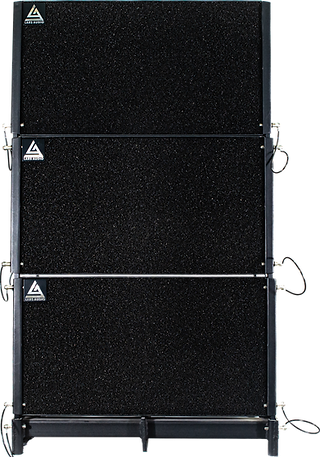

ALPHA AR210 is a compact High output line array system with dual 10Inch Neodymium Drivers and a single 3 inch Neodymium HF driver with a WaveTek Waveguiding device to ensure flawless frequency overlap and
deliver optimal sound quality.
Component LF : 2 x 10” ND Drivers
Component HF : 1 x 3” ND Drivers
Power : 800 Watts / 2000 Peak 10ms
Amplification Mode : PASSIVE
MAX SPL : 137 dB
Frequency Response : 63Hz-18KHz
Dispersion Horizontal : 90 Degrees
Rigging ; Push lock pin rigging
Connection : 2 x NL4
Cabinet : Wooden
Weight : 25Kg |
ALPHA AR-210
TECHNICAL SPECIFICATION

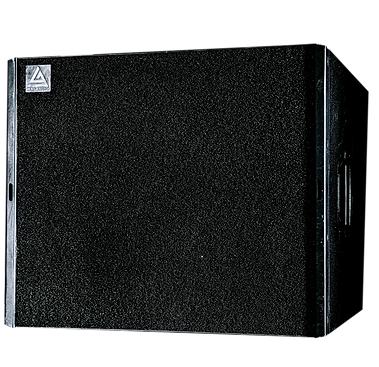

ALPHA FSUB118 is a compact High output Flying line array Sub System system with Single 18Inch Neodymium Drivers
Component LF : 2 x 10” ND Drivers
Component HF : 1 x 3” ND Drivers
Power : 800 Watts / 2000 Peak 10ms
Amplification Mode : PASSIVE
MAX SPL : 134 dB
Frequency Response : 35Hz-130/100 Hz
Rigging ; Push lock pin rigging for Alpha Series Rigging System
Connection : 2 x NL4
Cabinet : Wooden
Weight : 25Kg |
ALPHA FSUB-118
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION

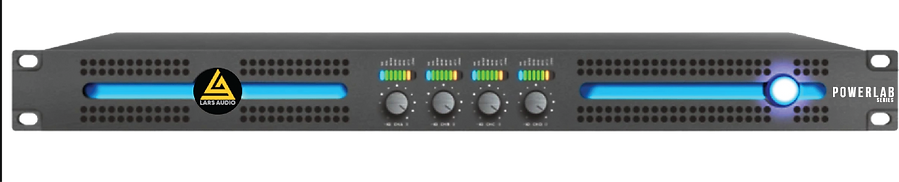

LAP - 4.10 POWER AMPLIFIER
Power Stereo 8 Ohms : 4 x 1,000 watts RMS
Power Stereo 4 Ohms : 4 x 1,450 watts RMS
Power Stereo 2 Ohms : 4 x 1,700 watts RMS
Power Bridge 8 Ohms : 2 x 2,400 watts RMS
Power Bridge 4 Ohms : 2 x 3,200 watts RMS
LAP - 4.13 POWER AMPLIFIER
Power Stereo 8 Ohms : 4 x 1,300 watts RMS
Power Stereo 4 Ohms : 4 x 1,650 watts RMS
Power Stereo 2 Ohms : 4 x 2,100 watts RMS
Power Bridge 8 Ohms : 2 x 2,960 watts RMS
Power Bridge 4 Ohms : 2 x 4,150 watts RMS
LAP - 4.16 POWER AMPLIFIER
Power Stereo 8 Ohms : 4 x 1,600 watts RMS
Power Stereo 4 Ohms : 4 x 2,500 watts RMS
Power Stereo 2 Ohms : 4 x 3,200 watts RMS
Power Bridge 8 Ohms : 2 x 3,850 watts RMS
Power Bridge 4 Ohms : 2 x 5,150 watts RMS
LAP - 4.20 POWER AMPLIFIER
Power Stereo 8 Ohms : 4 x 2,000 watts RMS
Power Stereo 4 Ohms : 4 x 3,200 watts RMS
Power Stereo 2 Ohms : 4 x 4,500 watts RMS
Power Bridge 8 Ohms : 2 x 5,120 watts RMS
Power Bridge 4 Ohms : 2 x 6,480 watts RMS
